The goal of the project was initially to build a simple air purifier with a plywood box, furnace air filters, and PC Fans. This is similar to the designs others have made such as these and many other similar designs: Clean Air Kits, Joey Fox, Tex Air Filters. Over time the scope grew a lot and I put more emphasis on making it look nice. Most of the work has gone into the construction of the hardwood outer shell which uses louvers and caning to conceal the filters and PC fans.

Materials

  • Filtrete MPR 1900 16" x 25" filters
  • Arctic P12 Fans
  • ESP 32 as controller MCU
  • Plywood for the inner box
  • Hardwood exterior
  • Rattan Cane

Gallery

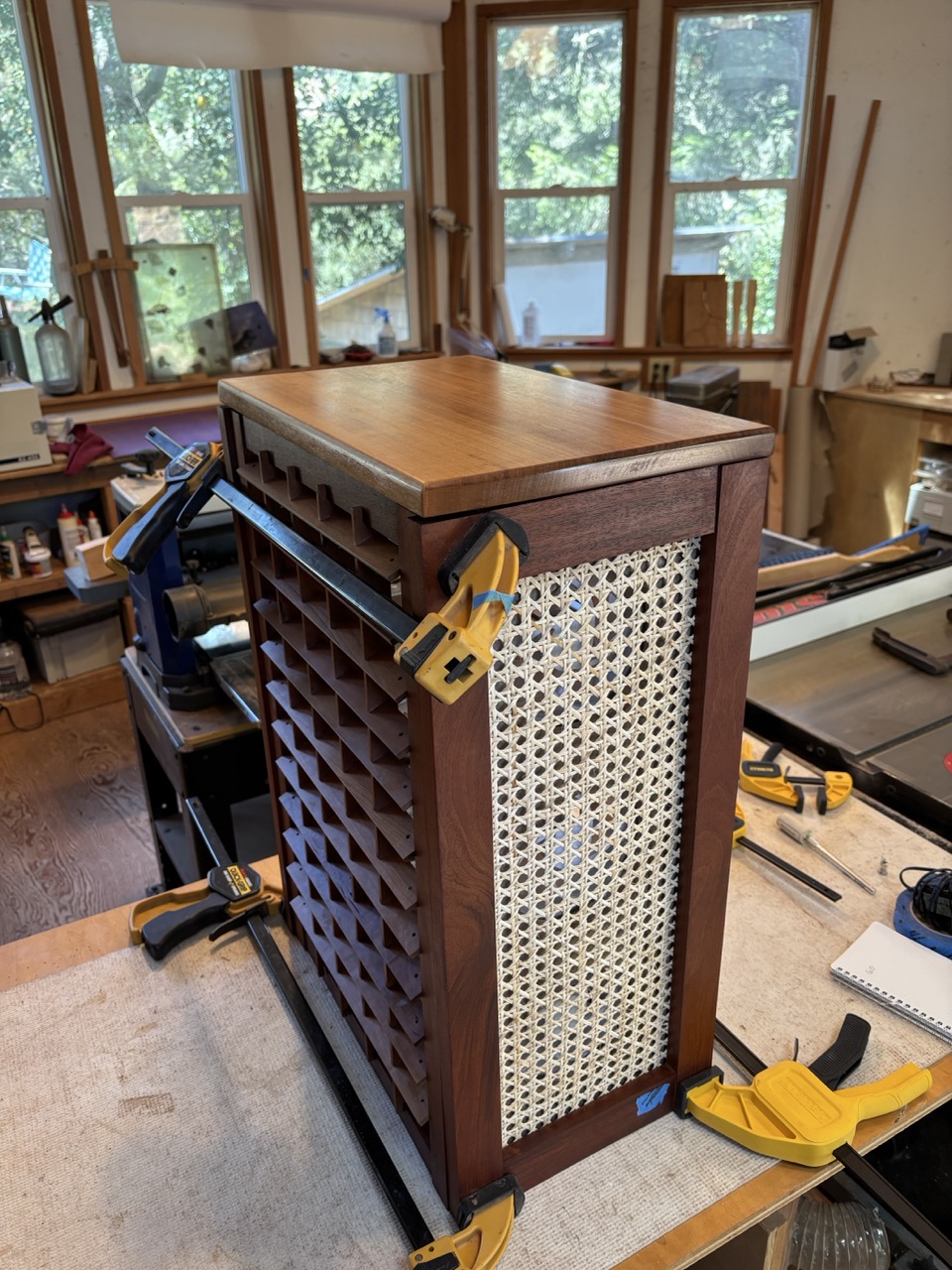

Tall wooden air purifier enclosure with louvered and cane-covered sides held together by clamps
The enclosure clamped together during a test assembly.

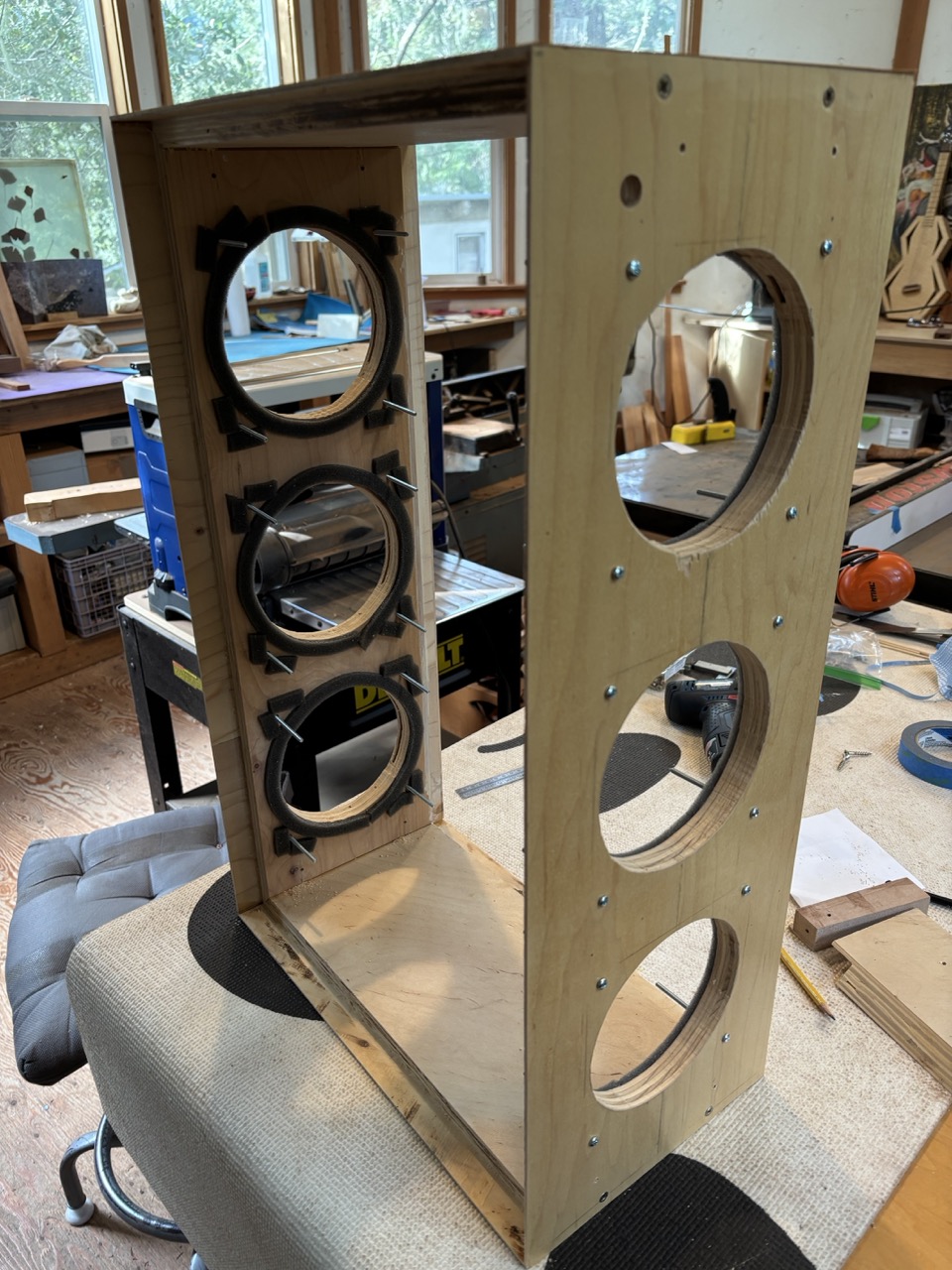

Plywood air purifier frame with six circular fan openings
The inner plywood structure with openings for six fans.

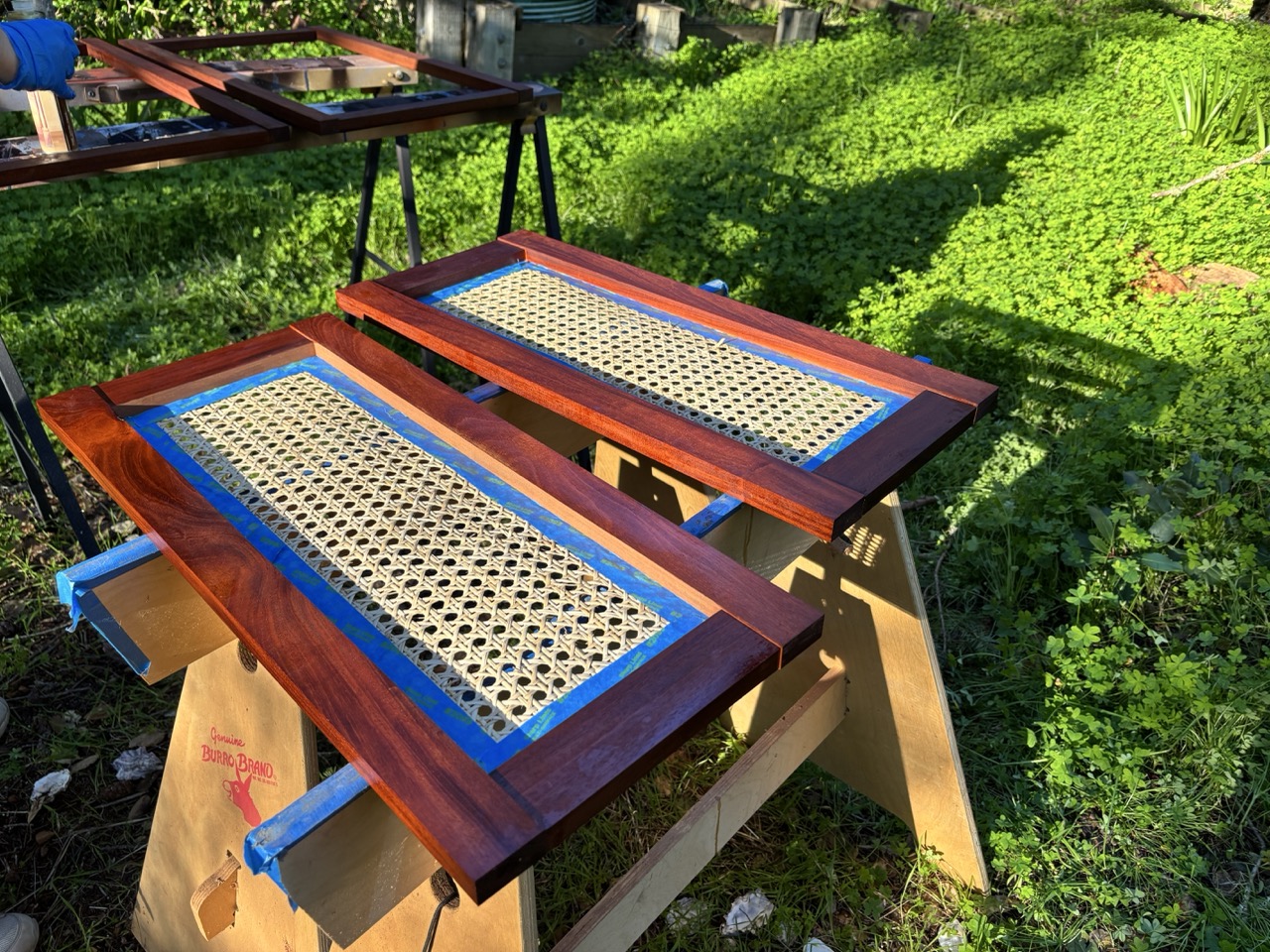

Hardwood and cane air purifier panels being finished outdoors
Finishing the hardwood and cane outer panels.

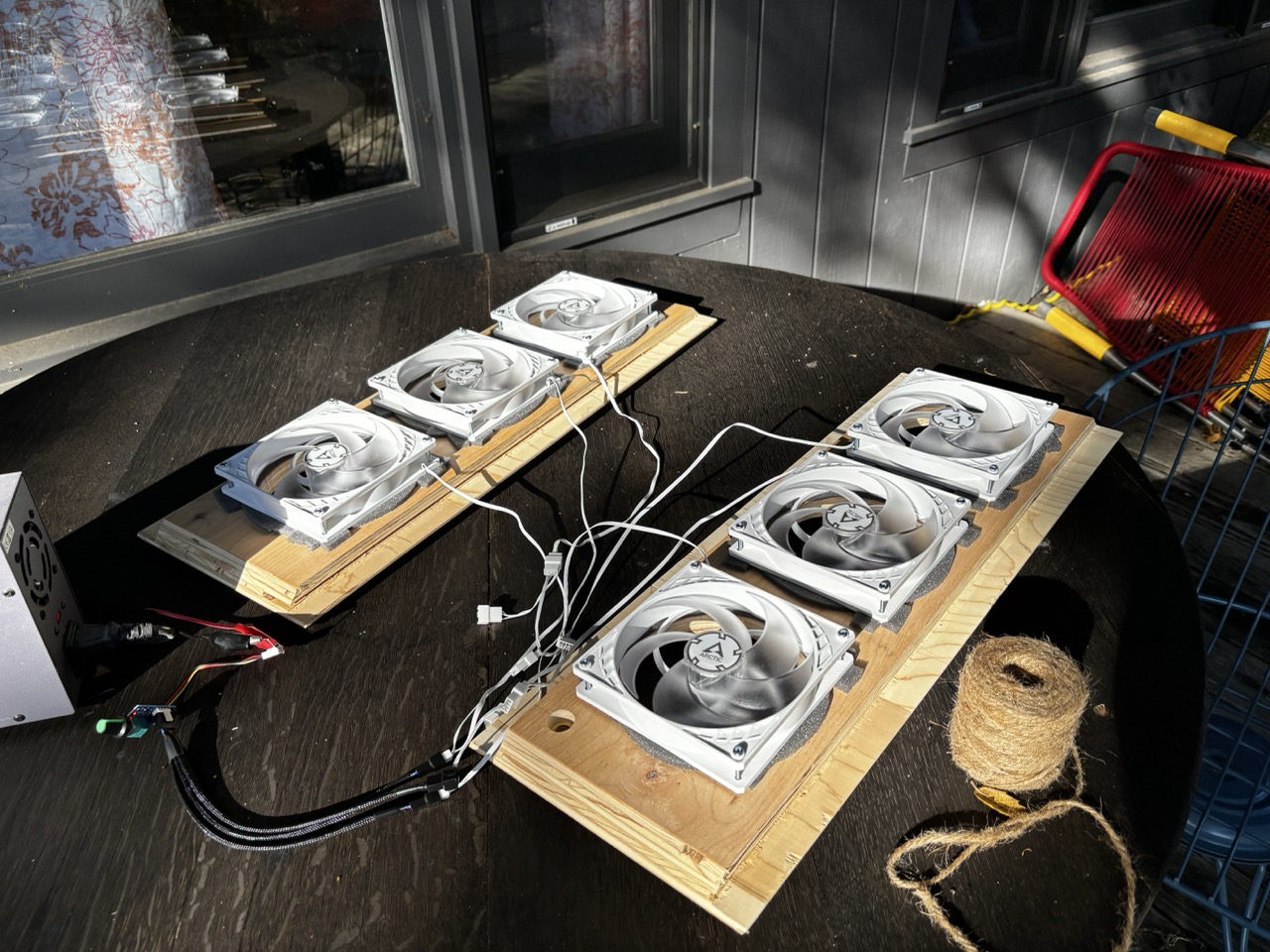

Six white computer fans wired on two plywood mounting panels
Six fans wired and test-fitted on their mounting panels.

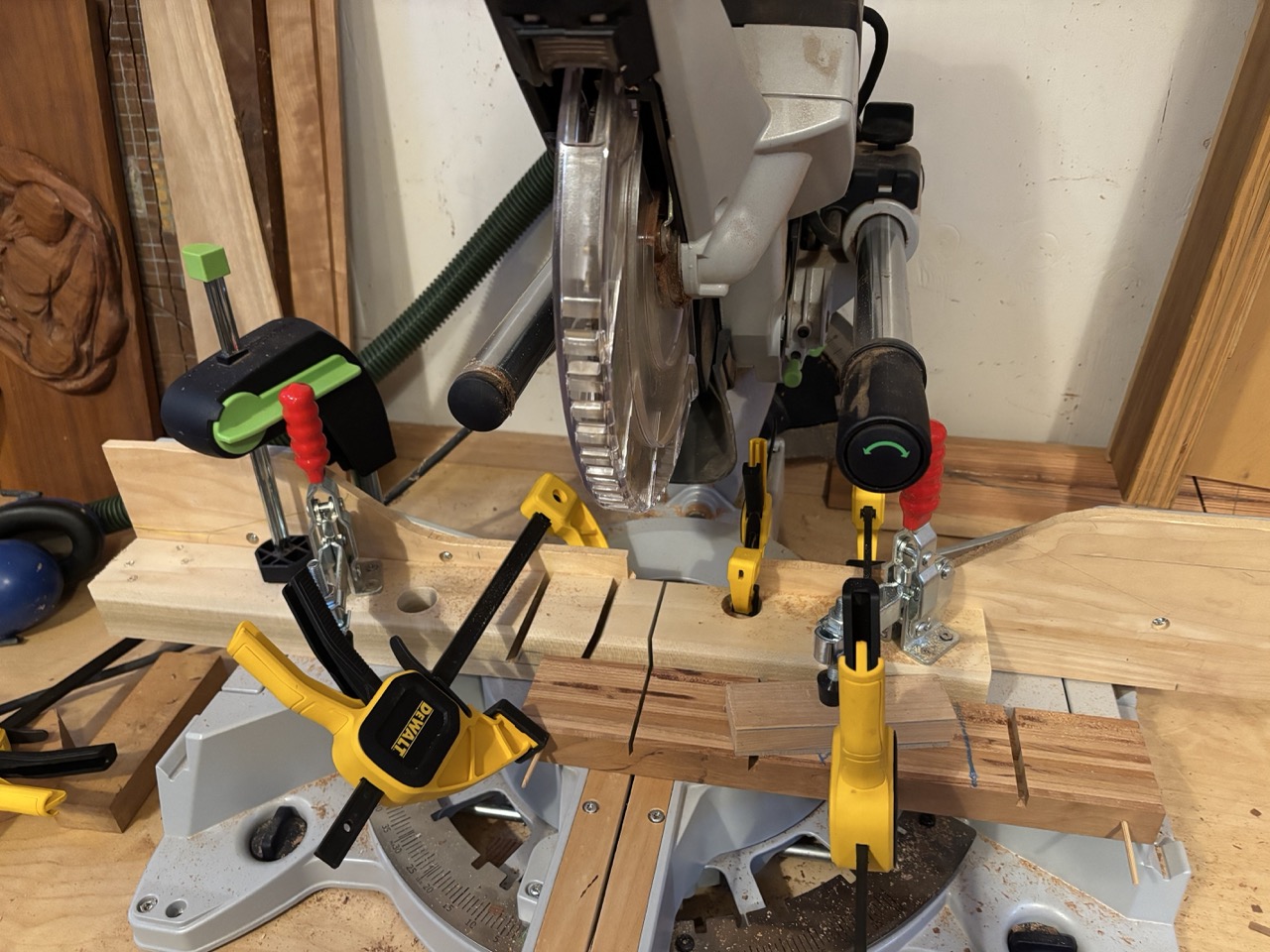

Small wooden louver pieces being cut on a miter saw with a stop jig
Cutting the wooden louvers with a jig on the chop saw.

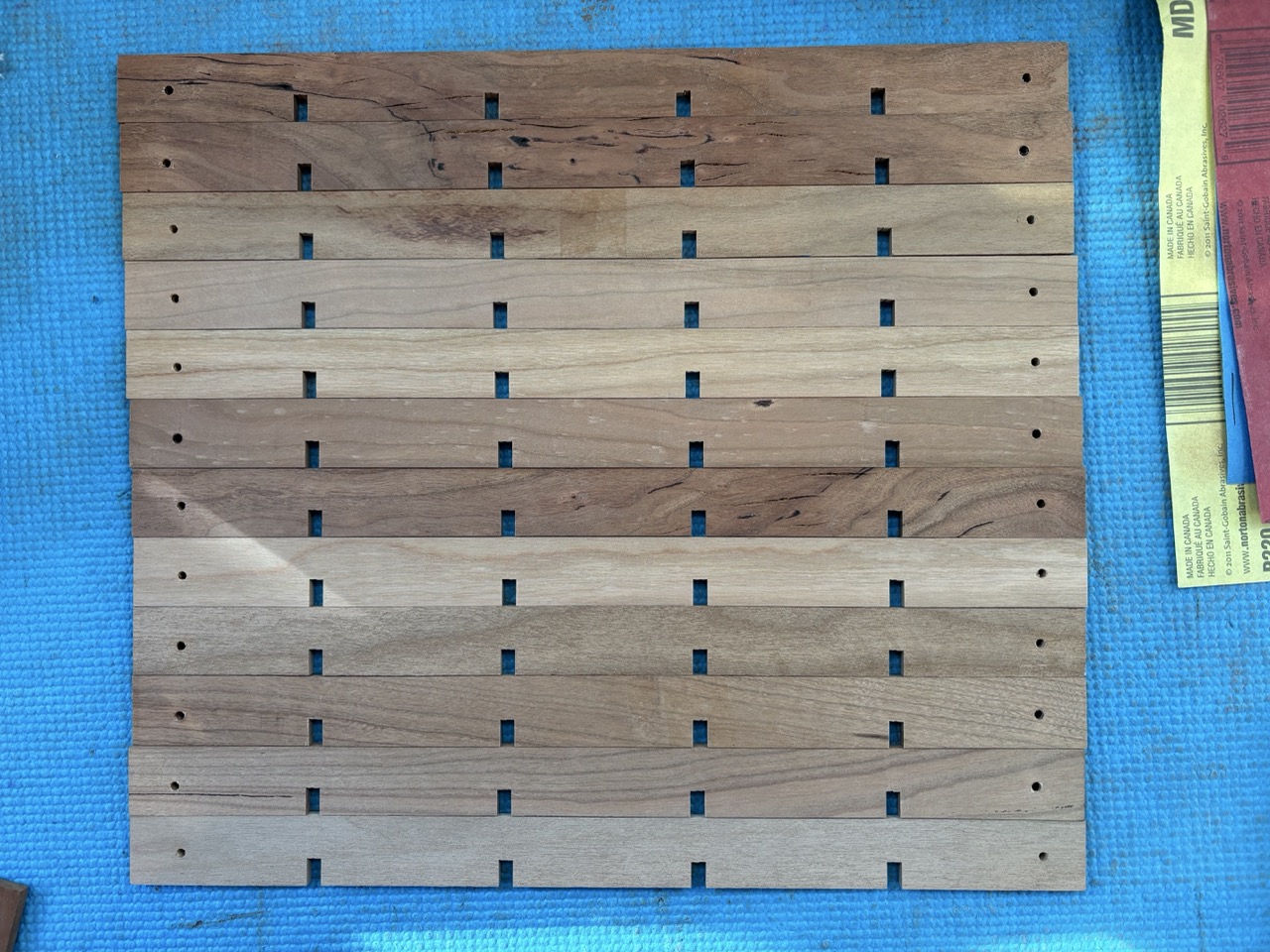

Rows of cut wooden louvers with evenly spaced assembly slots
A batch of cut louvers.

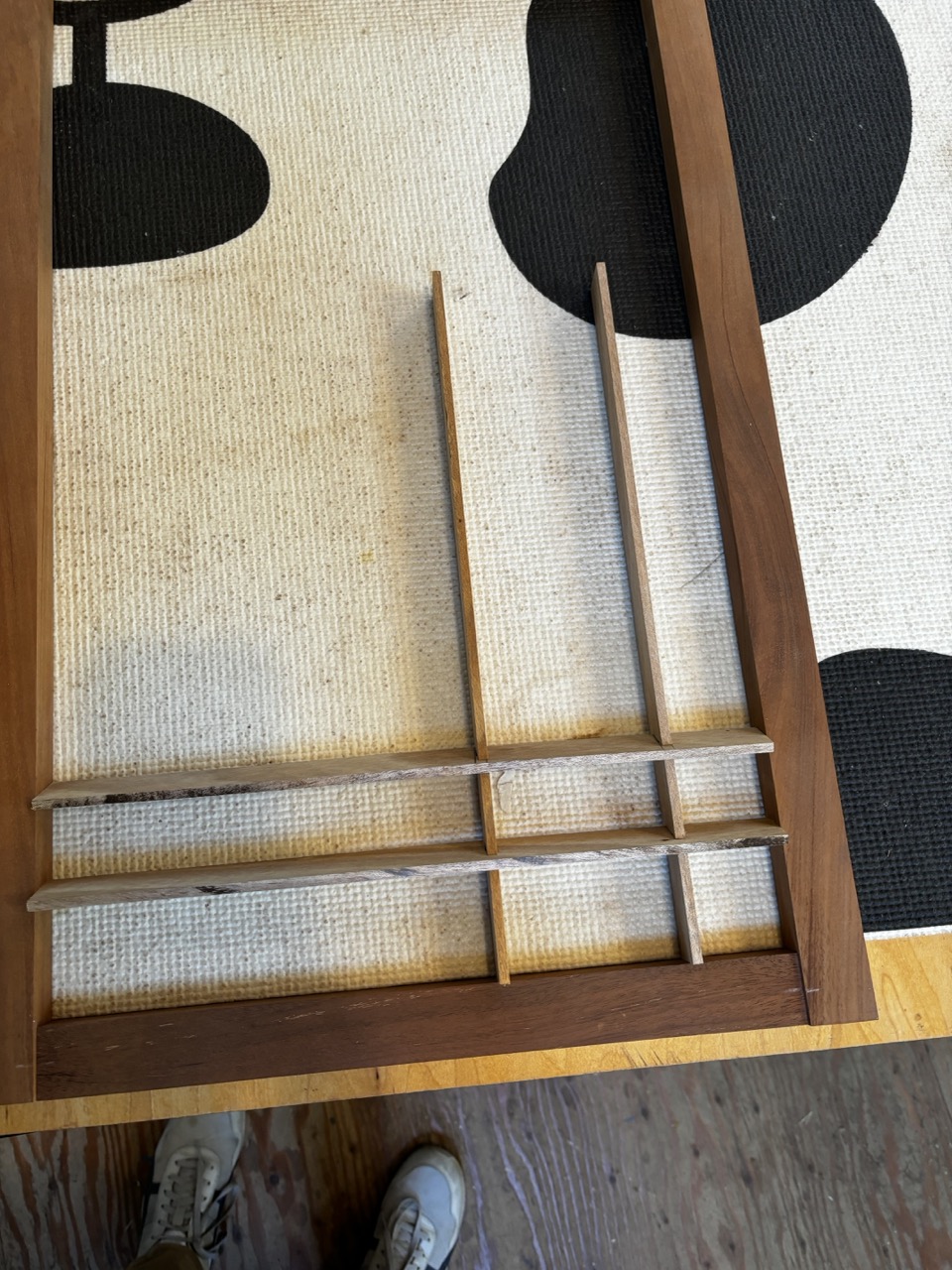

Wooden louvers test-fitted inside a rectangular hardwood frame
Test-fitting the louvers inside the outer frame.
